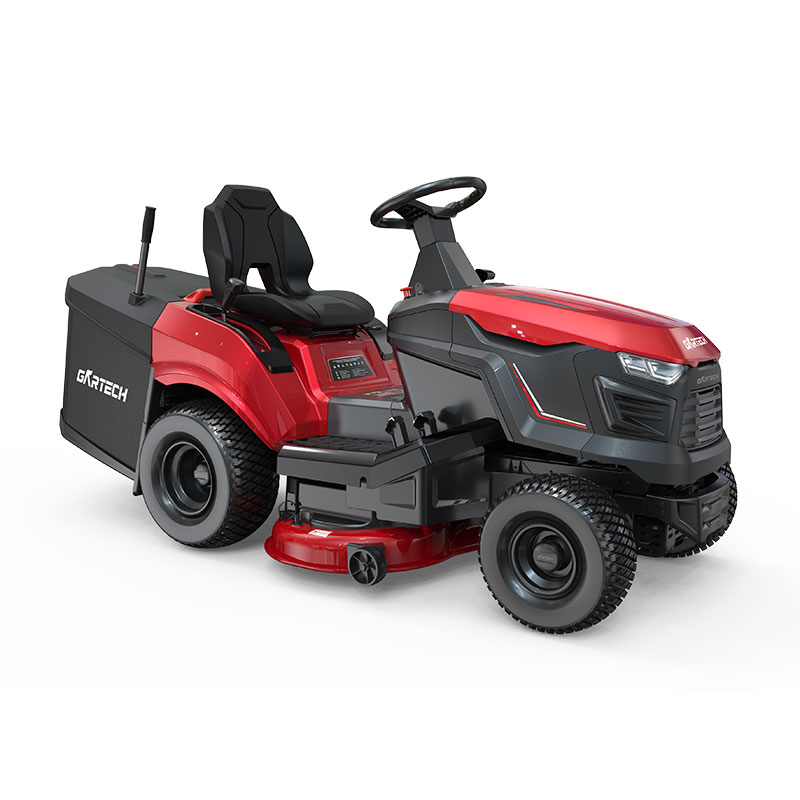

| Model | DRM38EH-D452 |
| Adjustable sliding seat | · |
| Ergonomic steering wheel | · |
| Powder-coated cutting deck | · |
| Visible fuel level | · |
| Headlights | · |
| Cup dolder | · |
| SPECIFICATIONS | |
| Engine displacement | 452CC |
| Engine feature | OHV |
| Cylinders | 1/cast-iron sleeve |
| Starting | Electric |
| Fuel capacity | 7.5L |
| TRANSMISSION | |
| Type | Hydrostatic |
| Max Speed forward | 8.8km/h |
| Max Speed reverse | 4.5km/h |
| CHASSIS | |
| Frame | Robotically welded |
| Tyres front | 15*6.00-6 |
| Tyres rear | 18*8.50-8 |
| Turning radius | 55cm |
| MOWER | |
| Cutting width | 98cm |
| Maximum working area | 5000㎡ |
| Mower deck | Steel |
| Collector capacity | 245L |
| Cutting height | 30~90mm |
| Cutting height positions | 7 |
| Blades | Twin |
| UNIT SPECIFICATIONS | |
| Weight | 200kg |
| Meas | 2300*960* 1110mm |
| Load qty | |
| 20GP(PCS) | 12 |
| 40GP(PCS) | 28 |
| 40HQ(PCS) | 42 |
